Discover the Best AV Receiver Features for Your Home

Your receiver is the brain of a true home theater. It switches video, decodes formats like Dolby Atmos and DTS:X, and powers multiple speaker channels from one box.

This guide sets expectations: you’ll learn what a receiver does, which modern specs matter in 2025, and how to match power and input counts to your room and budget.

Look for HDMI 2.1 with eARC, VRR, ALLM, and 8K or 4K/120 passthrough. Also check streaming options, calibration tools, and whether a phono input matters for vinyl listeners.

Smart planning means starting with 2.0 or 3.1 and expanding to 5.1 or 7.1 later. We’ll compare practical models like Onkyo, Yamaha, and Sony so you can pick the best fit for sound, video, and long-term value.

What an AV Receiver Does in a Modern Home Theater

Think of the receiver as the nervous system that coordinates every audio video source in your home. It accepts inputs, decodes formats, and sends clean video to the screen while powering speakers so sound fills the room.

Switching, decoding, and amplification in one hub

The receiver combines source switching, audio processing, speaker amplification, and volume control in a single box. You plug in streamers, consoles, cable, or disc players via HDMI and route both video and audio through one central device.

How receivers route signals to screens and speakers

Sources connect to HDMI inputs; the unit decodes formats, applies room correction, then sends video to your TV and power to each speaker channel. One amplified channel equals one speaker position; subwoofers usually use dedicated outputs and their own amp.

• Connectivity: Aim for at least five HDMI inputs to cover a streamer, console, disc player, and cable box with room to grow.
• Streaming and control: Mid-tier receivers add Wi‑Fi plus AirPlay 2 or Chromecast and app control for easy naming and operation.

AV Receiver vs. Stereo Receiver: Which One Fits Your Setup

Deciding on an AV or stereo path begins with one question: do you want cinema immersion or pure two‑channel sound?

AV receivers power five or more speakers for movies, sports, and TV. For roughly $800 you can get 4K switching, Dolby Atmos decoding, and multi‑channel amplification. That makes them ideal for a living room or theater where device switching and surround are priorities.

Stereo receivers or integrated amps drive two speakers. At the same $800 price point you often get higher fidelity parts for better two‑channel music. A stereo setup keeps wiring and controls simple for serious listening sessions.

Quick comparison and practical advice

• Choice: Pick an AV unit for immersive surround and TV integration; pick stereo for purist music focus.
• Value: $800 buys surround capabilities in an AV receiver or higher‑quality two‑channel parts in a stereo amp.
• Vinyl: Look for a dedicated phono input if your turntable lacks a built‑in preamp.
• Future: If you may add a center or height speakers later, start with an AV receiver for smoother expansion.

Channel Counts Explained for Surround Sound and Dolby Atmos

Channel counts determine how immersive your surround sound will feel in any given room. Understanding the number codes helps you pick a receiver that supports the layout you want.

From 5.1 and 7.1 to 5.1.2 and 5.2.4: what those numbers mean

Decode the numbers: in 5.1.2 the first digit is ear‑level speakers, the second is subwoofer outputs, and the third is height channels.

Add the first and third digits to estimate how many amplified channels your receiver must drive. For example, 5.1.2 needs seven amplified channels; 5.2.4 needs nine.

Planning for room size, speaker placement, and future speakers

• Start small, plan big: a 5.1 layout (five speakers plus a self‑powered subwoofer) suits small rooms.
• Move to 7.1 for larger or open rooms to widen surrounds and enable entry‑level height additions.
• Check ceiling height (8–12 ft ideal) before installing in‑ceiling height speakers.

Examples of entry, mid, and high channel configurations

Power and Performance: How Much Wattage You Really Need

Watt numbers catch the eye, yet real‑world loudness depends on speakers and space. Small differences like 70 W/ch versus 100 W/ch rarely sound dramatic to most listeners. The ear notices changes closer to a 2:1 ratio.

For most living rooms, around 100 watts per channel gives useful headroom. Movies swing from quiet dialog to explosions, so that reserve keeps peaks clean and prevents distortion. Clean peak power protects speakers and preserves clarity during high dynamic range passages.

Speaker sensitivity and impedance matter more than the headline number. Low‑sensitivity or 4‑ohm designs demand stronger current delivery and benefit from robust power supplies rather than just a bigger watt figure.

• Real‑world loudness: room size and speaker sensitivity drive perceived volume more than small watt differences.
• Practical target: ~100 W/ch is a solid compromise for many rooms and budgets.
• Future proof: choose a receiver with preamp outputs so you can add external amps or more outputs later.

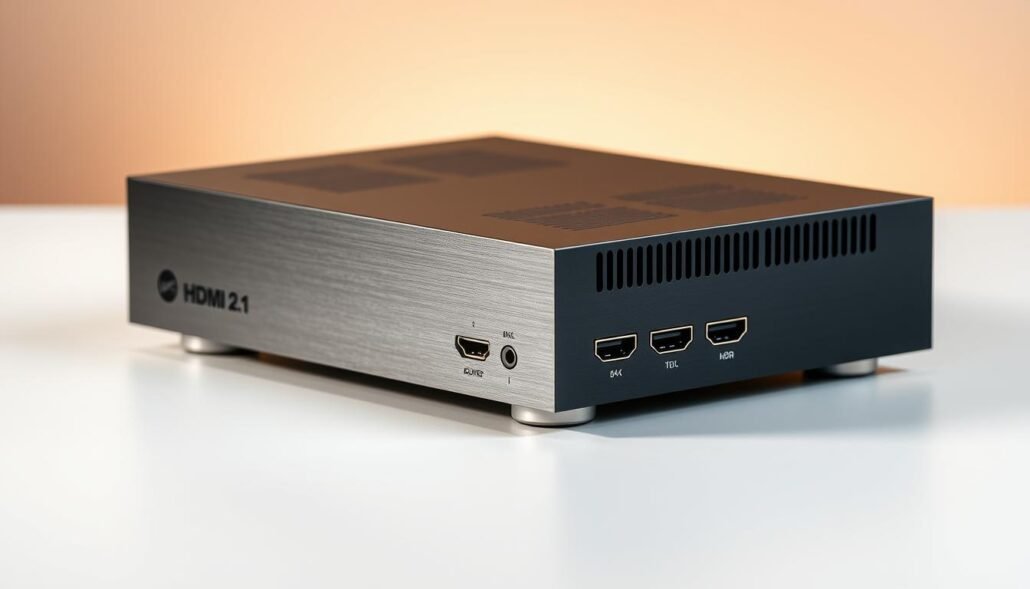

HDMI 2.1, 8K, and HDR Support You Shouldn’t Skip

HDMI advances now dictate how your receiver handles high‑bandwidth video and lossless audio. HDMI 2.1 raises bandwidth up to 48 Gbps, enabling 8K and 4K/120 signals that next‑gen consoles and PCs need.

Key HDMI 2.1 capabilities to check

eARC carries lossless Dolby TrueHD and Atmos from TV apps back to the receiver, so you don’t lose audio quality when streaming. VRR and ALLM improve gaming smoothness and reduce lag. QMS speeds input switching for faster source changes.

Bandwidth, ports, and gaming-ready passthrough

Confirm which HDMI inputs support 40–48 Gbps so your 4K/120 or 8K source hits the right port. Low input lag plus VRR gives the best console experience on Xbox Series X and PS5.

HDR, copy protection, and practical I/O counts

Insist on HDR10, Dolby Vision, and HLG pass‑through to preserve picture fidelity across discs and streaming content. Also verify HDCP 2.2/2.3 across inputs to avoid black screens with protected content.

• Inputs: at least five HDMI inputs cover a cable box, streamer, disc player, and two consoles.
• Outputs: dual HDMI outputs help run a TV plus projector or a second zone without constant cable swaps.
• Fine print: not every port supports every HDMI 2.1 capability—read the spec sheet before you buy.

Dolby Atmos and DTS:X for Immersive Surround Sound

Object-based mixes place sounds in three-dimensional space so effects can move above and around you. This is the core idea behind modern audio for home theater. Instead of fixed tracks, individual sounds become objects with position metadata. That allows accurate overhead motion and precise placement in a room.

Height channels, overhead effects, and speaker options

Common layouts start with 5.1.2 — five ear-level speakers plus two height channels. Upgrading to 5.1.4 or 7.1.4 adds vertical resolution and fuller envelopment.

Use in‑ceiling speakers for best localization. If running wires upward is hard, Atmos-enabled up‑firing modules bounce sound off the ceiling to simulate heights.

• Receiver pairing: confirm your receiver has enough amplified channels and Atmos decoding for the layout you plan.
• Content: Atmos mixes are common on 4K Blu‑ray and major streaming services, and game support is growing.
• Calibration: set heights’ levels, distances, and crossovers carefully for clear dialogue and accurate object steering.

Expect lifelike rain, aircraft flyovers, and stadium ambience that boost both movie and gaming experience. Proper speaker choice and tuning deliver the 3D sound that defines modern home theater.

Connectivity and Inputs: HDMI inputs, analog, and phono

Count your devices first — that simple step often decides how many HDMI inputs you really need.

Aim for at least four to five hdmi inputs to cover a cable box, disc player, game console, and streamer with room to grow. Many homes benefit from five to six ports so you avoid external switchers as new sources arrive.

How many HDMI inputs are enough for most systems

Tally your sources: list current and planned components so the receiver matches your needs. Don’t forget optical/coax digital and a few analog inputs for legacy audio gear.

Turntables and phono input considerations

If your turntable lacks a built‑in preamp, choose a receiver with a phono input or budget for an external phono stage. The Onkyo TX‑NR6100 is a practical example that includes a phono stage plus modern streaming options.

• Front USB/HDMI ports aid quick hookups and firmware updates.
• Dual HDMI outputs help run a TV and projector; pre‑outs allow adding external amps later.
• Label inputs in the UI and bundle cables to keep speaker and component wiring tidy during setup.

Streaming and Multiroom Audio: AirPlay 2, Chromecast, HEOS, MusicCast

Whether a unit only pairs by Bluetooth or joins your Wi‑Fi network will change daily use. Budget receivers often stop at Bluetooth. That model forces your phone to act as the source and can drop when calls come in.

Step up to Wi‑Fi and you get direct streaming, better stability, and higher-quality audio. Look for native support like Spotify Connect and TIDAL Connect so the receiver streams from the cloud while your phone acts as a remote.

Protocol choices and voice control

Choose AirPlay 2 for Apple users; pick Chromecast if you favor Google. Brand ecosystems such as HEOS and MusicCast let you group rooms, play different sources, or sync the whole house.

• Practical note: the Onkyo TX‑NR6100 and TX‑RZ50 include Chromecast and wide streaming support; the TX‑RZ50 adds Google Assistant and Alexa for voice requests.
• Connectivity tip: wired Ethernet gives the most reliable path for hi‑res streams; Wi‑Fi is convenient but network dependent.
• Plan ahead: verify lossless and hi‑res support if sound quality matters for your music system.

Room Correction Systems: Audyssey, Dirac Live, and more

Room acoustics reshape what your speakers actually deliver, and calibration helps correct that mismatch. A microphone measures peaks, nulls, and timing so the receiver can align levels, distances, and EQ for more consistent sound.

Why calibration changes the listening experience

Real rooms create bass hotspots and cancellations that mask detail. Good calibration reduces these problems so dialogue, effects, and music present with cleaner balance and clearer dynamics.

Audyssey tiers vs. Dirac modular upgrades

Audyssey scales from basic MultEQ up to XT32 on higher models, offering progressively finer filters. Dirac Live takes a different path: the core can be modular, often limiting low‑end correction to 500 Hz until you buy the full‑band or Bass Control add‑on.

Multi‑sub management and mic placement best practices

• Multi‑sub advantage: receivers with two to four subwoofer outputs can even bass across seats for uniform impact.
• Mic technique: follow on‑screen prompts and spread measurement points around the main listening area—don’t cluster them in one spot.
• Try both: audition calibration on and off, then tweak target curves or crossover numbers by hand to match your taste.

Example: the Onkyo TX‑RZ50 with Dirac Live rewards careful setup and multiple mic positions, delivering highly involving Atmos playback when tuned well.

Gaming Features: 4K/120Hz, latency, and next-gen consoles

For serious gamers, the receiver must pass high‑bandwidth signals while keeping audio delay imperceptible. Verify which HDMI ports on a unit support 4K/120 and VRR so consoles run at peak frame rates. Also confirm ALLM to auto‑enable game mode on compatible TVs.

Console compatibility and real examples

The Sony STR‑AN1000 supports HDMI 2.1 with 4K/120 and includes Digital Cinema Auto Calibration IX for multi‑seat mapping and manual height input. The Onkyo TX‑NR6100 handles Xbox Series X 4K/120 with HDR10 and Dolby Vision passthrough.

Latency, presets, and calibration for game rooms

Manage latency by minimizing DSP and using passthrough when possible. Use eARC only when needed to keep audio in sync during fast play.

• Preset approach: one low‑latency setup for competitive play, another with dolby atmos and post processing for cinematic sessions.
• Calibration tip: tune heights and surround delays so positional cues stay accurate in shooters and immersive titles.
• Maintenance: keep firmware current—updates often fix HDMI handshake and VRR quirks on many models.

Multi-Zone and Whole-Home Audio Video Options

Letting different rooms play different content turns a single receiver into a whole‑home brain for audio and video.

Zone basics: Zone 2 and Zone 3 can power speakers in other rooms or send line‑level outputs to separate amps. That lets one room enjoy a movie while another plays music from a different source.

Sending different content to different rooms and screens

Video outputs: dual HDMI outputs can feed a TV and a projector or a second screen without swapping cables. This is handy for a living room and adjacent media nook.

Live TV caveat: to watch two live channels at once you need separate set‑top boxes or tuners — one per simultaneous channel.

• Combine wired and wireless: use built‑in platforms like HEOS or MusicCast, or add network streamers to bring legacy rooms into the same systems.
• Channel allocation: some receivers let you reassign internal amps to power Zone 2 speakers when back surrounds are idle.
• Plan controls: app control and clear input names make it easy for family members to select sources, set volumes, and pick rooms.
• Power and long runs: long speaker cables to other rooms may benefit from external amplification to keep sound clean and preserve headroom.

Space, Heat, and Setup: Placement, ventilation, and cabling

Think of your receiver like a small engine: it needs clear airflow, strong support, and tidy wiring to perform well. Plan the setup so the unit can cool itself and you can reach connections by hand when needed.

Receivers run warm because they pack five to eleven amplifiers and dense electronics. Allow about six inches of clearance above the chassis and roughly twenty inches of depth for cables and airflow. If the unit sits behind a door or in a tight rack, consider quiet fans or cabinet vents to keep temperatures stable.

Receivers are heavier and deeper than older models. Use solid shelving or a proper AV rack to avoid sagging. Leave service loops on cables and label both ends so you can swap or troubleshoot without tugging at terminals.

• Ventilate generously: keep space around the chassis to prolong life.
• Measure cabinet depth: many units need ~20 inches once rear cables and airflow are included.
• Organize wiring: separate power from signal runs, use banana plugs or spades, and avoid pinched speaker leads.

Plan power with a quality surge protector or power conditioner sized to the system’s draw. A careful setup pays off with reliable sound and fewer surprises during upgrades.

Budget Tiers and Value: Where Spending More Matters

Spending more buys channels, power, and finer tuning—but returns taper at a point. Choose a price range that matches your room and listening habits before chasing specs.

When to move from 5.1 to 7.1 and beyond

At roughly $500, many receivers reliably drive a solid 5.1 setup for movies and music. That is a sensible budget for most living rooms.

Step up to mid‑range models to unlock 7.1 support and basic Atmos (5.1.2). Move when your room can place side and rear speakers or when you want two height channels.

When separates start to make sense

Above about $1,700 the value curve flattens. At that point, consider an AV preamp plus external multichannel amps if you need more current, more channels, or tailored power for low‑sensitivity speakers.

Budget smart: spend on better speakers and a quality subwoofer first. They affect perceived audio more than small receiver spec jumps.

Brand and Model Examples to Inform Your Choice

Start by identifying whether music, movies, gaming, or vinyl will drive your receiver choice. That decision narrows the range of models and points you to the right balance of power, calibration, and I/O.

Onkyo TX‑NR6100 and TX‑RZ50 highlights

Onkyo TX‑NR6100 offers 7 x 100 W/ch, Dolby Atmos and DTS:X decoding, six HDMI inputs (three 8K capable), HDR10/Dolby Vision pass‑through, and a dedicated phono input for a turntable. It also includes broad streaming support like Chromecast and AirPlay for easy music playback.

Onkyo TX‑RZ50 raises power to 120 W/ch, adds six fully 8K HDMI inputs, and ships with Dirac Live for advanced calibration. Two‑way Bluetooth and voice assistant integration make it a solid step‑up for rooms that need extra headroom and tuning precision.

Yamaha RX‑A4A: build, phono stage, and cinematic sound

Yamaha RX‑A4A focuses on quality construction and cinematic presentation. It delivers roughly 110 W in stereo, seven HDMI ports, and a notably strong built‑in phono preamp that benefits vinyl listeners who prefer not to add an external component.

Sony STR‑AN1000 for gamers and HDMI 2.1 support

Sony STR‑AN1000 is tailored for gaming and video. This 7.2 model supports HDMI 2.1 4K/120, dual 8K outputs, HDR10/Dolby Vision/HLG pass‑through, and advanced DCAC IX auto‑calibration for multi‑seat setups.

• Value pick: the TX‑NR6100 blends Atmos decoding, streaming, and a phono input for turntable owners.
• Step‑up: TX‑RZ50 adds power and Dirac for superior room correction.
• Build champ: Yamaha’s construction and phono stage favor cinematic rooms and vinyl rigs.
• Gamer’s ally: Sony delivers 4K/120 passthrough and accurate calibration for fast action.

Feature cross‑check: verify which HDMI inputs support 4K/120 or 8K and confirm HDR pass‑through. Finally, plan speakers and a subwoofer that match the receiver’s power and tonal balance for the best home theater result.

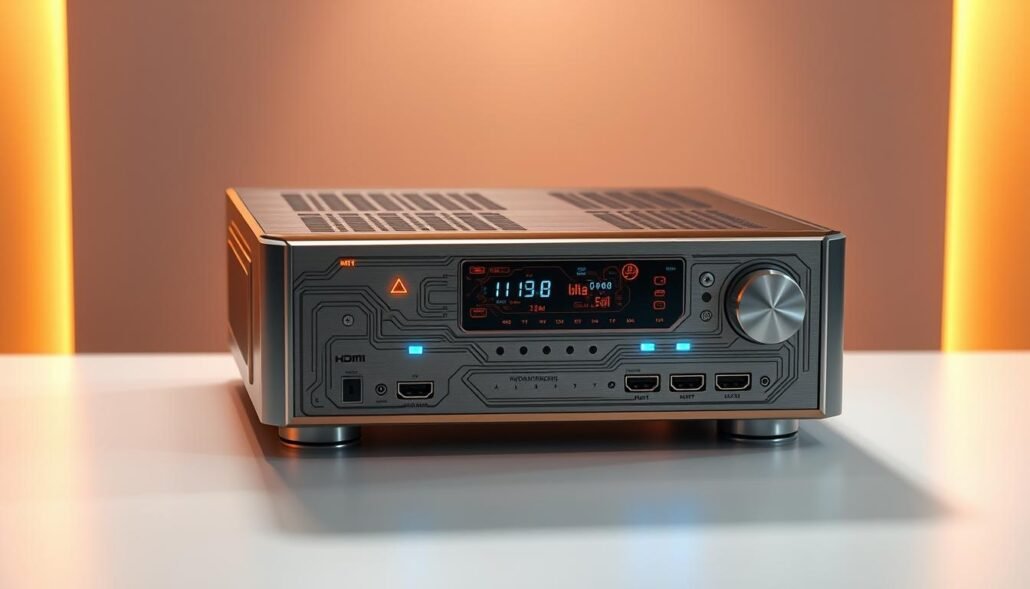

Future-Proofing Your System: Features to Grow With

Plan today for tomorrow’s media so your system keeps pace with new consoles and streaming formats.

Start with HDMI capabilities that matter: eARC, VRR, ALLM and 4K/120 extend the useful life of a receiver and protect your video and audio quality.

Pick a unit with extra processing channels and full pre‑outs. That lets you add external amplifiers when you move from 5.1 to 5.1.4 or 7.1.4 without replacing the whole rack.

• Video compatibility: insist on HDR10, Dolby Vision, and HLG pass‑through so new disc and streaming content looks correct.
• Room readiness: mature correction with app control and multi‑sub support ages better than basic auto‑EQ.
• Headroom and power: extra watts and thermal capacity reduce distortion as you upgrade speakers.
• Software: brands that push firmware updates keep HDMI interoperability and add new capabilities over time.

Conclusion

A smart final pick balances channel needs, HDMI 2.1 readiness, streaming ecosystem, and room correction. Choose the unit that fits your speaker layout and the inputs you actually use.

Focus on priorities: reliable 4K/120 and HDR pass‑through, enough HDMI ports, and the right number of amplified channels deliver the best home theater impact and daily usability.

Run calibration carefully, set crossovers and levels, and re‑measure after moves or firmware updates. Shortlist models like the Onkyo TX‑NR6100 and TX‑RZ50, Yamaha RX‑A4A, or Sony STR‑AN1000 based on whether you stream, game, or play vinyl.

Make the final choice with your room and speakers in mind, and you’ll enjoy years of engaging surround sound and a smooth home theater experience.
